Air Slide: High-Efficiency, Low-Maintenance Fluidized Conveying Systems
An Air Slide (also known as an Air Gravity Conveyor) is the most efficient method for transporting fine, dry, fluidizable powders.
Fourteckh Enviro (India) Private Limited is an industry-leading manufacturer and supplier of high-performance Air Slide Systems. Designed for the seamless horizontal transport of fine, dry bulk materials, our Air Slides utilize the principle of "aeration" to turn solid powders into a fluid-like state. This allows material to flow down a slight incline via gravity, offering a near-silent and energy-efficient alternative to screw conveyors or drag chains.
The Working Principle

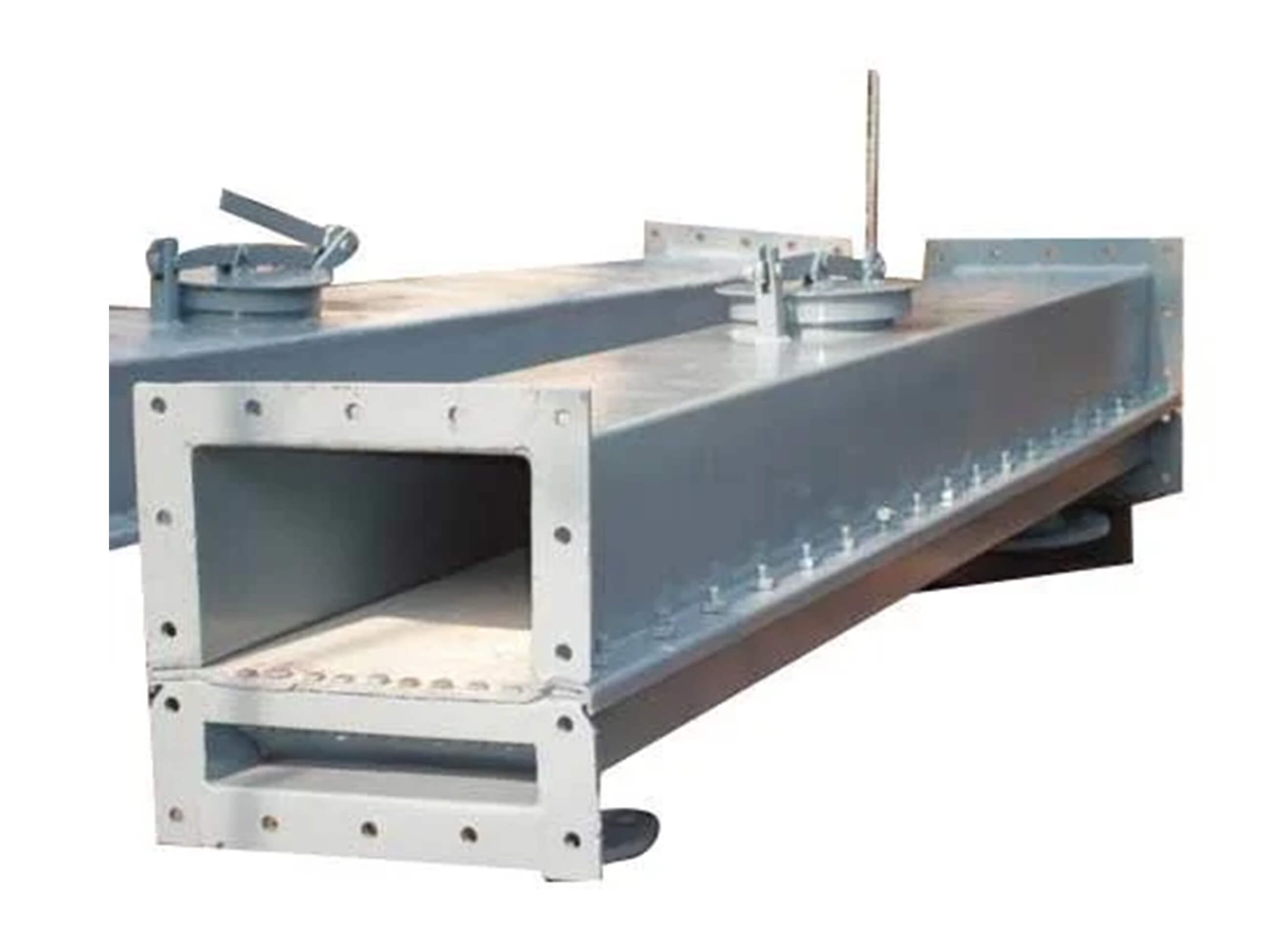

An Air Slide consists of a rectangular chamber divided by a porous Aeration Fabric (Media). Low-pressure air is introduced into the lower chamber (the plenum), which permeates through the fabric. This air reduces the friction between material particles, "fluidizing" the powder so it flows like a liquid down a shallow decline (typically 4° to 10°).
Key Technical Features :
- Zero Moving Parts : Unlike mechanical conveyors, Air Slides have no bearings, motors, or chains in the material stream, virtually eliminating mechanical wear and downtime.
- Superior Aeration Media : We use high-grade, multi-ply polyester or ceramic porous fabrics designed for uniform air distribution and resistance to moisture and heat.
- Low Energy Consumption : Operates on low-pressure air provided by simple centrifugal blowers rather than high-horsepower motors.
- Dust-Tight Construction : Completely enclosed, gasket-sealed housing prevents dust emissions, ensuring a clean and safe working environment.
- Modular Design : Available in standard lengths and sections, making them easy to install, extend, or reroute within existing plant layouts.
Ideal Material Applications :
Air Slides are exceptionally effective for fine, dry, and non-sticky powders with a consistent particle size :
- Cement Industry : Raw meal, finished cement, and fly ash transport.
- Aluminium & Mining : Alumina, bauxite, and fine mineral dust.
- Chemical Processing : Detergent powders, soda ash, and calcium carbonate.
- Power Plants : Dry fly ash handling from Bag Filters and ESP hoppers.
- Construction Materials : Gypsum, lime, and pulverized minerals
Technical Specifications Summary :
- Standard Widths : 150mm to 1000mm (Custom widths available)
- Conveying Capacity : Up to 1000 m³/hr (depending on material & slope)
- Slope Angle : Typically 4° to 10° (Adjustable based on fluidizability)
- MOC (Housing) : Mild Steel Fabricated or Stainless Steel
- Media Type : Heavy-duty Polyester, Nomex, or Sintered Metal
- Temperature : Standard up to 150°C (High-temp media available for 250°C
