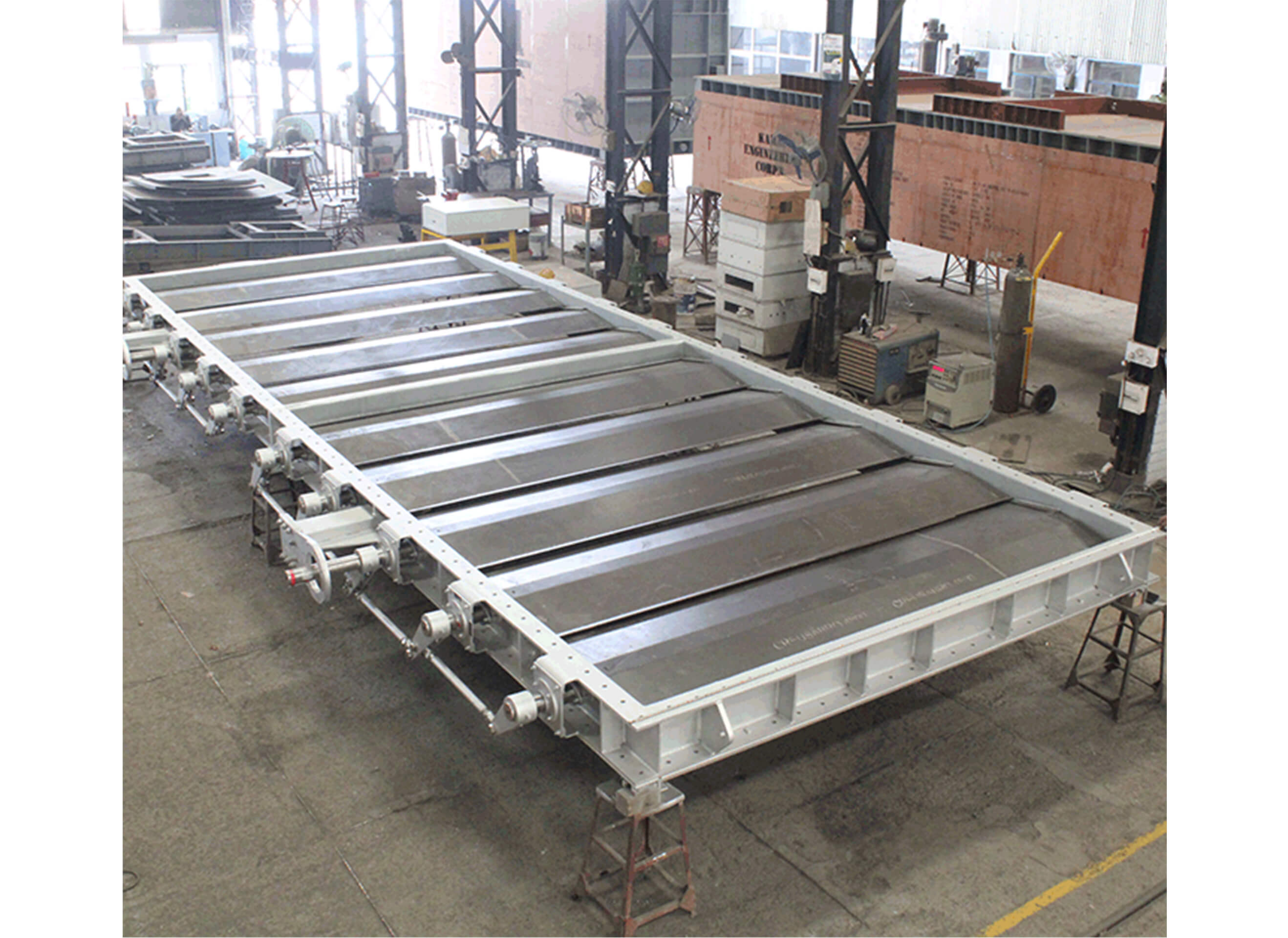

Multi-Louver Dampers :
Advanced Flow Modulation & Large-Scale Duct Isolation
Fourteckh Enviro (India) Private Limited is a premier manufacturer and exporter of heavy-duty Multi-Louver Dampers. Specifically engineered for high-volume airflow and gas handling systems, our dampers provide exceptional control over flow rates and pressure within large duct networks. Whether you need precise modulation for a process or total isolation for maintenance, our louver designs deliver industry-leading performance. At Fourteckh Enviro, we specialize in custom-engineered duct solutions. Every damper is designed to handle the specific static pressure and gas velocity of your system. We prioritize structural integrity, ensuring that our dampers do not vibrate or leak even in the most turbulent airflow environments. Our designs allow for "in-situ" seal replacement, drastically reducing your plant's maintenance windows.
The Engineering Principle
The Multi-Louver Damper utilizes a series of parallel or opposed blades mounted on synchronized shafts. This "multi-blade" approach allows the damper to manage high-velocity air with much lower torque requirements than a single-blade butterfly valve, while offering a more compact installation footprint.
Key Technical Features :
- Parallel vs. Opposed Blade Action :
- Parallel Blades : Ideal for rapid "Open/Close" isolation where low pressure drop is a priority.
- Opposed Blades : Best for precise flow modulation and throttling, as they provide a more linear control characteristic.
- Low-Torque Linkage System : Our high-precision external linkage ensures all blades move in perfect synchronization, reducing wear on the actuator and preventing blade "flutter."
- Advanced Sealing Options : Available with flexible metal "SS-Jam" seals or high-temperature tadpole gaskets to achieve up to 99.9% shut-off efficiency.
- External Bearing Design : Bearings are housed outside the gas stream in "outboard" pedestals to prevent contamination from dust and heat, ensuring maintenance-free operation.
- Heavy-Duty Construction : Casing and blades are fabricated from reinforced Mild Steel or Stainless Steel to prevent warping under high-temperature cycles.
Strategic Industry Applications :
Our Multi-Louver Dampers are the standard choice for large-scale industrial ducting :
- Power Plants : Controlling secondary air and flue gas in boiler systems.
- Cement & Steel : Managing airflow in kiln hoods, pre-heaters, and cooling banks.
- HVAC & Ventilation : Large-scale air intake and exhaust for industrial facilities.
- Dust Collection Systems : Balancing suction across multiple branches of a Bag Filter or ESP system.
- Gas Cleaning : Regulating flow into scrubbers and chemical reactors.
Technical Specifications Summary :
- Sizes : From 300mm x 300mm up to 3000mm x 3000mm (Square/Rectangular)
- Blade Design : Airfoil (for low pressure drop) or Flat Plate reinforced
- Material of Construction : MS, SS304, SS316, or SS310 for high-temp zones
- Actuation : Electric Actuator (4-20mA), Pneumatic, or Manual Hand-Lever
- Operating Temp : Standard up to 250°C (Special alloys available for up to 700°C)
