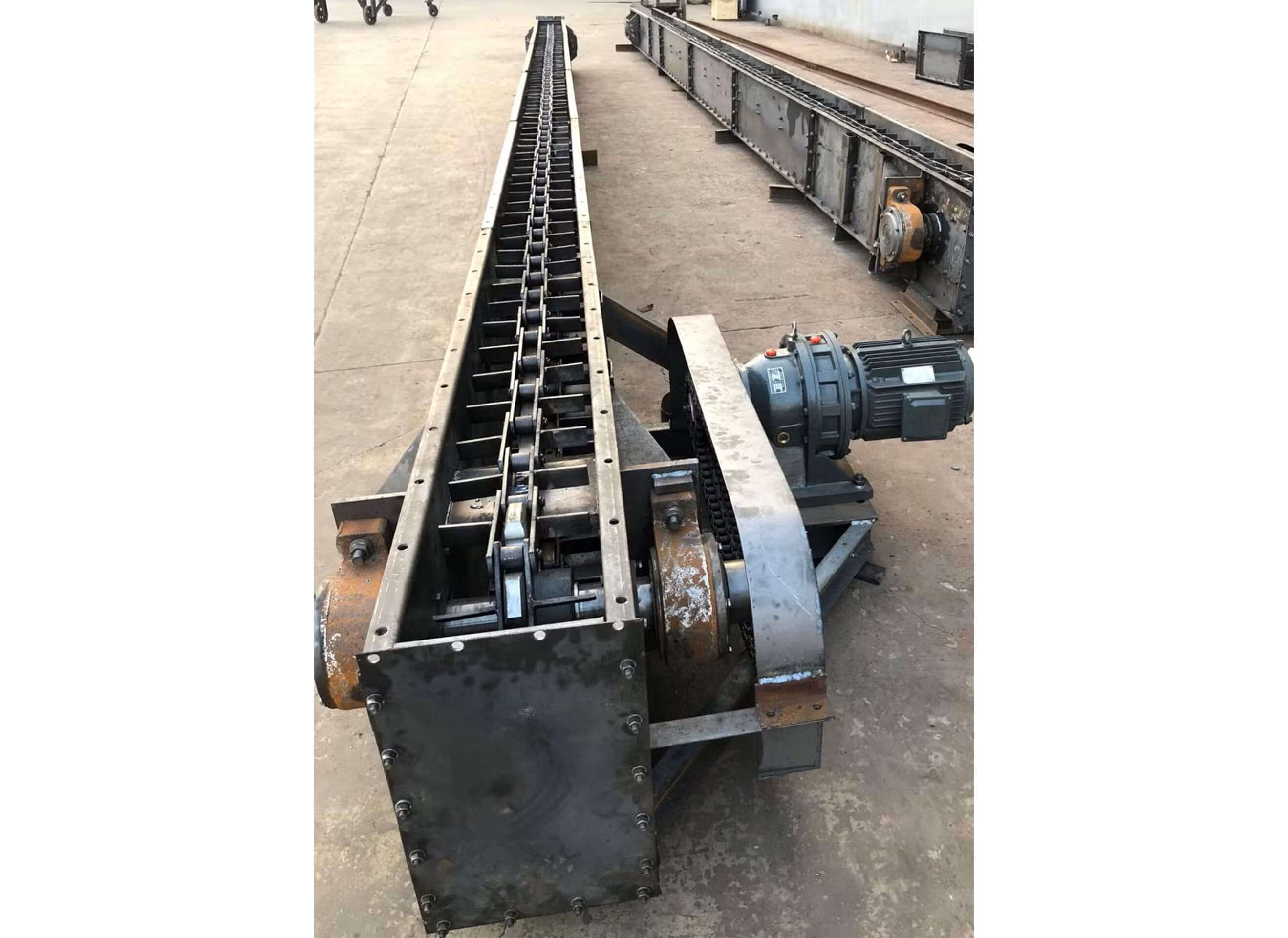

Drag Chain conveyors : Heavy-Duty En-Masse Conveying for Abrasive Bulk Solids
Fourteckh Enviro (India) Private Limited is a premier manufacturer and exporter of high-strength Drag Chain Conveyors. Engineered for the most punishing industrial environments, our drag chains provide a robust solution for the horizontal or inclined transport of heavy, abrasive, and high-temperature materials. By utilizing a continuous chain-and-flight mechanism within a sealed trough, we ensure a dust-free and high-capacity conveying process.
The Engineering Principle :
The Drag Chain Conveyor operates on the "en-masse" principle. A high-tensile steel chain equipped with specialized flights (paddles) moves through a stationary trough. As the chain moves, it "drags" the material along the bottom of the casing. Because the internal friction of the material is greater than the friction against the trough walls, the material moves in a solid, continuous stream, allowing for high volumetric efficiency in a compact cross-section.
Targeted Industry Applications :
Our Drag Chain Conveyors are purpose-built for industries where standard belt conveyors fail :
- Coal Handling (Power Plants) : Reliable transport of raw coal to crushers and the handling of bottom ash and fly ash under boilers.
- Steel Plants : Moving sinter, iron ore concentrates, pellets, and hot lime. Designed to handle high-temperature materials directly from furnaces.
- Cement Industry : Ideal for clinker transport, raw meal feeding, and moving abrasive additives like gypsum and slag.
- Mining & Minerals : Handling crushed ores and minerals with high bulk densities.
Key Technical Features
- Heavy-Duty Forged Chains : We utilize case-hardened, drop-forged steel chains designed to withstand extreme tensile loads and abrasive wear.
- Wear-Resistant Liners : The conveyor troughs are fitted with replaceable bottom and side liners made from Hardox, Manganese Steel, or Ceramic Tiles to extend equipment life.
- Dust-Tight & Weatherproof : Completely enclosed housing prevents environmental contamination and protects the material from external elements.
- Segmented Sprockets : Precision-machined, hardened drive sprockets are often provided in segments to allow for easy replacement without dismantling the main shaft.
- Safety & Monitoring : Equipped with zero-speed switches, plug-point sensors, and shear-pin sprockets to protect the drive system from unexpected overloads.
Technical Specifications Summary :
- Capacity : 10 TPH to 500+ TPH (Customizable)
- Chain Type : Double Strand or Single Strand (Forged or Bush-Roller)
- Material of Construction : MS Fabricated with Hardened Liners / SS304 / SS316
- Conveying Angle : Horizontal to 45° Incline (depending on flight design)
- Drive System : High-efficiency Geared Motor with Fluid Coupling
