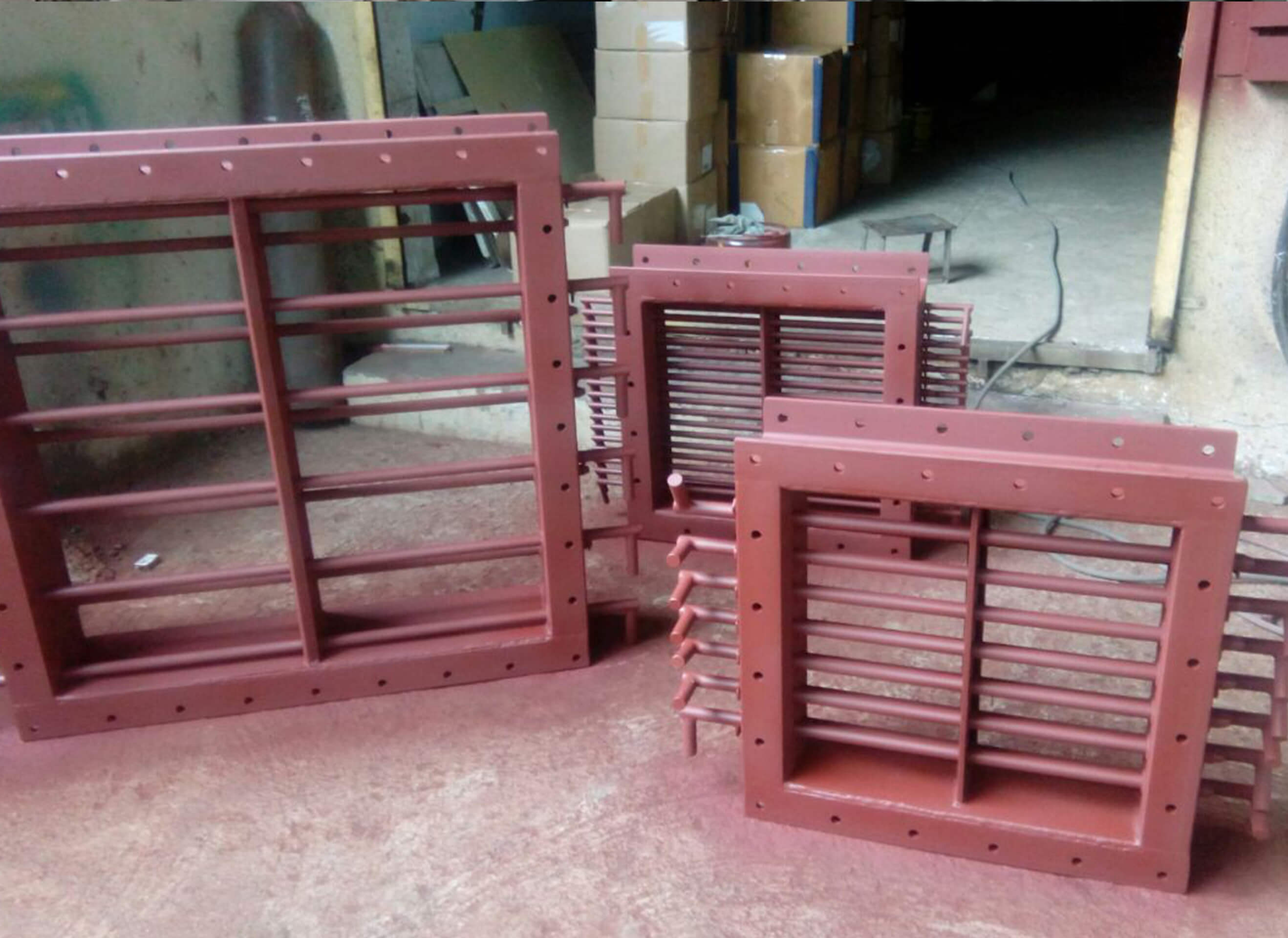

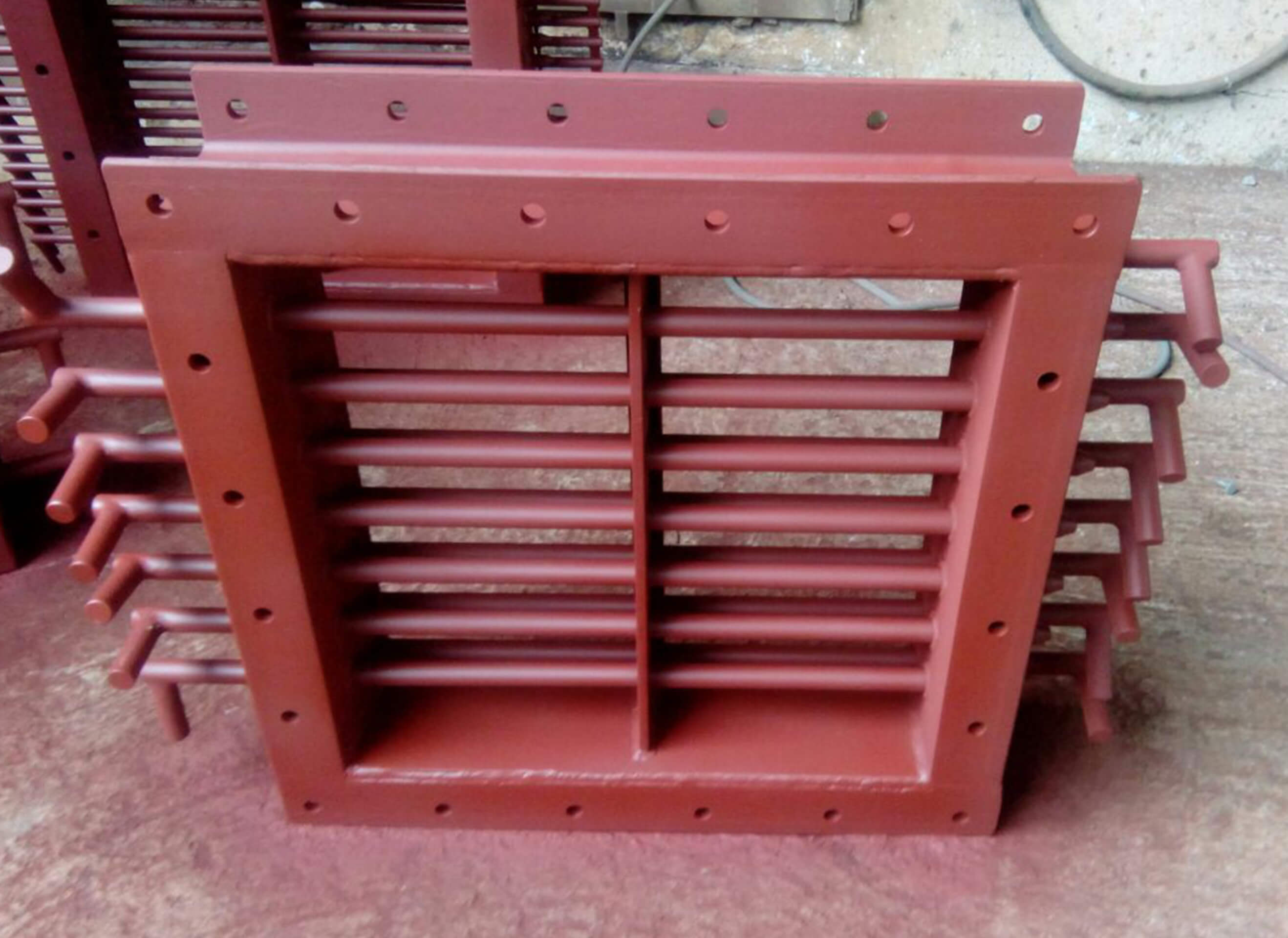

Rod Gates

Rugged Manual Isolation for Coarse & Lumpy Materials

Fourteckh Enviro (India) Private Limited manufactures heavy-duty Rod Gates designed for the isolation of coarse, abrasive, and large-sized bulk solids. Unlike traditional solid-plate slide gates, Rod Gates utilize a series of individual pointed steel rods to cut through a column of material, making them the ideal solution for emergency shut-off or maintenance isolation under hoppers, bins, and silos. The Rod Gate operates by manually or hydraulically driving high-strength steel rods through the material stream. Because the rods have a small surface area compared to a solid plate, they can penetrate "clogged" or "bridged" material with significantly less force. This design allows for a partial or full shut-off even when the hopper is full of heavy ores, coal, or large aggregates. Our designs feature generous rod-guides to prevent jamming and locking pins to ensure the rods stay in place once the gate is closed. For extremely wide hoppers, we provide reinforced "Rod Supports" to prevent sagging, ensuring that Fourteckh gates remain the most durable isolation solution in your plant.

Technical Features :

• Individually Operated Rods : Each rod can be moved independently, allowing the operator to create a partial opening for flow regulation or a complete seal for maintenance.
• High-Strength Carbon Steel Rods : We use precision-straightened, heavy-wall rods (often hardened) to prevent bending under the weight of the material head load.
• Self-Cleaning Design : The individual rods don't provide a flat surface for material build-up, ensuring that the gate remains functional even in dusty or sticky environments.
• Robust Frame Construction : The gate frame is fabricated from heavy-duty ISMC channels or reinforced plates to ensure structural alignment and ease of installation between flanges.
• Tapered Entry : Rods are often provided with tapered or pointed ends to facilitate easier penetration through dense material layers

Industry Applications :

Rod Gates are typically installed upstream of feeders or conveyors to allow for safe equipment maintenance :

• Mining & Minerals : Isolation of iron ore, limestone, and copper concentrates in large silos.
• Coal Handling : Emergency shut-off for coal bunkers in thermal power plants.
• Cement Industry : Managing flow of clinker, crushed stone, and large additives.
• Steel Plants : Handling sinter, pellets, and raw ore in high-capacity bins.

Technical Specifications :

• Standard Sizes : 300mm to 2000mm (Square or Rectangular)
• Rod Material : Carbon Steel (En8/En9) or Stainless Steel
• Frame MOC : Mild Steel / Stainless Steel / Hardened Wear Plates
• Operation : Manual (Hand-pushed/Hammered)
• Applicable Solids : Coarse, lumpy, or abrasive materials (> 50mm)
