Dry Beneficiation of Iron Ore

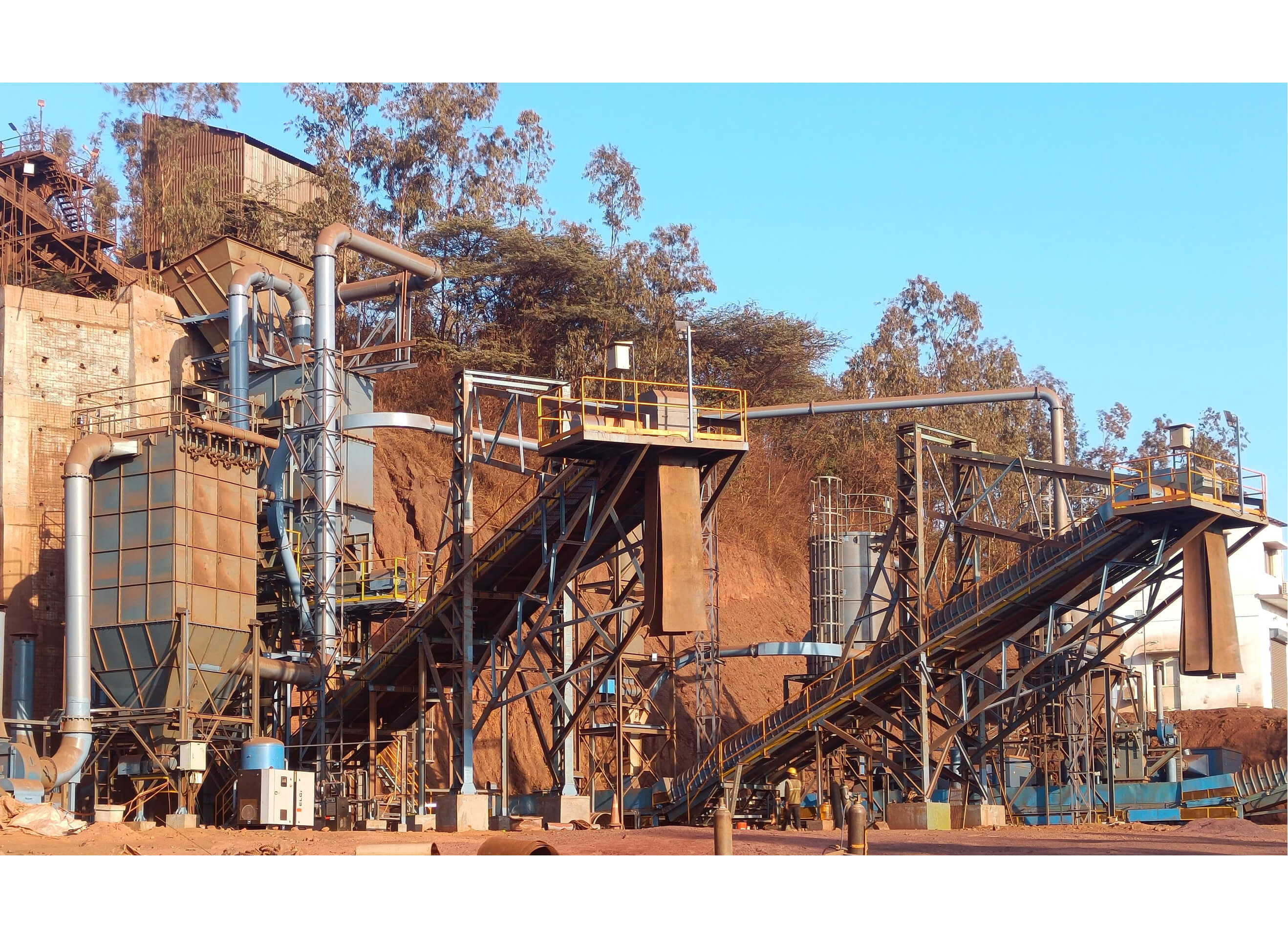

Dry beneficiation of Iron Ore using Lean Phase Pneumatic Conveying is a specialized process that combines material transport with particle separation, this a "Green Mining" initiative by eliminating the need for water in ore processing. Fourteckh has recently provided a Dry Iron Ore Beneficiation Plant for major conglomerate in Indi on EPC basis.
Dry Beneficiation of Iron Ore-High-Efficiency Lean Phase Pneumatic Processing :
Fourteckh Enviro (India) Private Limited offers advanced engineering solutions for the Dry Beneficiation of Iron Ore utilizing Lean Phase Pneumatic Conveying technology. This innovative approach first time in India allows mining and mineral processing units to upgrade ore quality (Fe grade) through air-based separation, completely eliminating the water consumption and tailing dam requirements associated with traditional wet processing.
The Process Principle :
In a Lean Phase system, iron ore fines are suspended in a high-velocity airstream. Dry beneficiation leverages the difference in physical properties (density, size, and shape) between high-grade iron ore and low-grade gangue (silica or alumina). As the material travels through the pneumatic line at high speeds, it is directed into specialized aerodynamic separators where centrifugal force and air resistance classify the particles.
Key System Components :
- High-Speed Roots Blowers : Provide the constant air volume required to keep heavy iron ore fines in suspension (20 - 30 m/s).
- • Fourteckh Heavy-Duty Rotary Airlock Valves : Acts as the critical seal at the feed point, ensuring high-pressure air does not escape into the hopper while precisely metering the ore into the conveying line.
- Air Classifiers & Cyclones : The "heart" of the beneficiation process where the lean phase stream is expanded, allowing heavier, high-Fe particles to drop out while lighter impurities are carried away to the dust collection system.
- Abrasion-Resistant Ducting : Since iron ore is highly abrasive, our systems feature Wear back with cement mixed jackets, Ceramic-lined bends and Hardened-steel piping to ensure long-term structural integrity.
Technical & Environmental Advantages
- Water-Free Operation : Ideal for arid regions or mines where water sourcing and effluent treatment are cost-prohibitive.
- Immediate Grade Improvement : Effectively reduces Alumina (Al2O3) and Silica Si O2 content in iron ore fines, increasing the market value of the product.
- Compact Footprint : Unlike massive spiral separators or jigs, pneumatic beneficiation lines can be integrated into existing plant layouts with minimal space.
- Dust-Tight Containment : The entire process happens within a closed-loop or negative-pressure environment, ensuring zero fugitive dust emissions.
At Fourteckh Enviro, we understand the "Material-to-Air" ratios required to transport heavy minerals. Iron ore has a high bulk density (approx 1.6 to 2.2 t/m^3), making Lean Phase design critical. Our systems are engineered with:
- Variable Frequency Drives (VFDs) : To fine-tune air velocity based on the specific gravity of the ore being processed.
- Specialized Feeders : To prevent "slugging" or line chokes, which are common when handling heavy mineral fines.
- High-Efficiency Bag Houses : To capture the ultra-fine gangue, leaving you with a clean, high-grade iron ore concentrate.
Technical Specifications for Iron Ore Systems :
- Material Handled : Iron Ore Fines / Blue Dust / Sinter Feed
- Conveying Mode : Lean Phase (High Velocity / Low Pressure)
- Wear Protection : Basalt, Ceramic, or Ni-Hard Lining at impact zones
- Feed Rate : Custom designs from 10 TPH to 100 TPH
