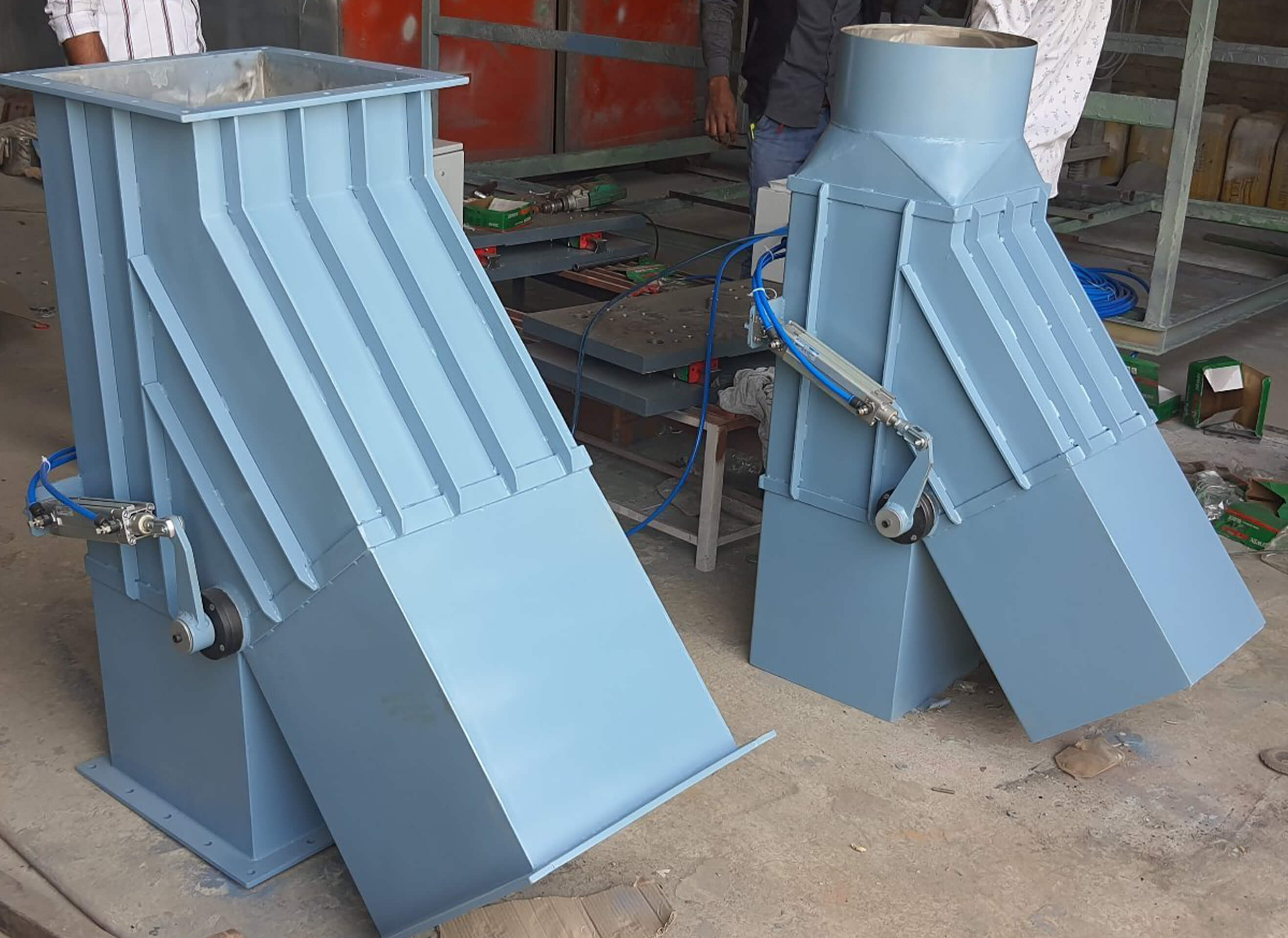

Y Diverter Gates

Fourteckh Enviro (India) Private Limited is a premier manufacturer and exporter of heavy-duty Y-Diverter Gates. Designed to streamline the distribution of dry bulk solids, our diverter gates allow for the seamless redirection of material from one source to two separate discharge points. Whether integrated into gravity-fed systems or pneumatic lines, our Y-Diverters ensure high-speed operation with zero cross-contamination.

The Engineering Principle :

The Y-Diverter features an internal "flap-gate" or "bucket" mechanism that pivots to block one outlet while fully opening the other. Our design ensures a smooth internal transition, minimizing material turbulence and preventing the accumulation of dust or granules in the "dead zones" of the valve body.

Key Technical Features

• Robust Diverter Blade : The internal flap is reinforced to handle the impact of falling materials and is available with hardened wear-liners for abrasive applications.
• Positive Sealing : Equipped with industrial-grade seals (PTFE, Silicone, or Neoprene) to prevent material leakage into the inactive leg, ensuring 100% stream separation.
• Symmetrical Design : Standard 60° or 90° included angles ensure balanced flow and minimize the footprint required for installation.

Actuation Options :

• Pneumatic : High-speed cylinders for automated, remote-controlled routing.
• Manual : Lever-operated with locking pins for occasional diversion.
• Motorized : For controlled, heavy-duty switching in high-capacity lines.

Serviceability : Features large side-access inspection doors, allowing for seal replacement or blade cleaning without dismantling the entire unit.

Versatile Industrial Applications :

Our Y-Diverter Gates are engineered for reliability across a wide spectrum of bulk handling sectors:

• Silo & Warehouse Management : Routing material to different storage bins or packaging lines.
• Grain & Feed Processing : Directing grains to different processing mills or cleaning stations.
• Cement & Minerals : Handling abrasive clinker, fly ash, or ore concentrates.
• Chemical & Plastic : Transferring resins, pellets, and powders without cross-batch contamination.
• Food Industry : Stainless steel (SS316) versions with mirror-finish interiors for hygienic material routing.

Technical Specifications Summary :

• Sizes : 150mm to 800mm (Round or Square Flanges)
• Material of Construction : MS Fabricated, SS304, SS316, or Abrasion Resistant (AR) Steel
• Transition Angles : 45°, 60°, or 90° (Custom offsets available)
• Operating Temperature : Standard up to 250°C (High-temp versions available)
• Drive System : Pneumatic Cylinder, AC Geared Motor, or Manual Lever
